Great headphone amp
"Great headphone amp / Dac but no manual. I use it everyday, so I had to figure it out myself. It wasn’t hard, but still, a manual would of been nice"

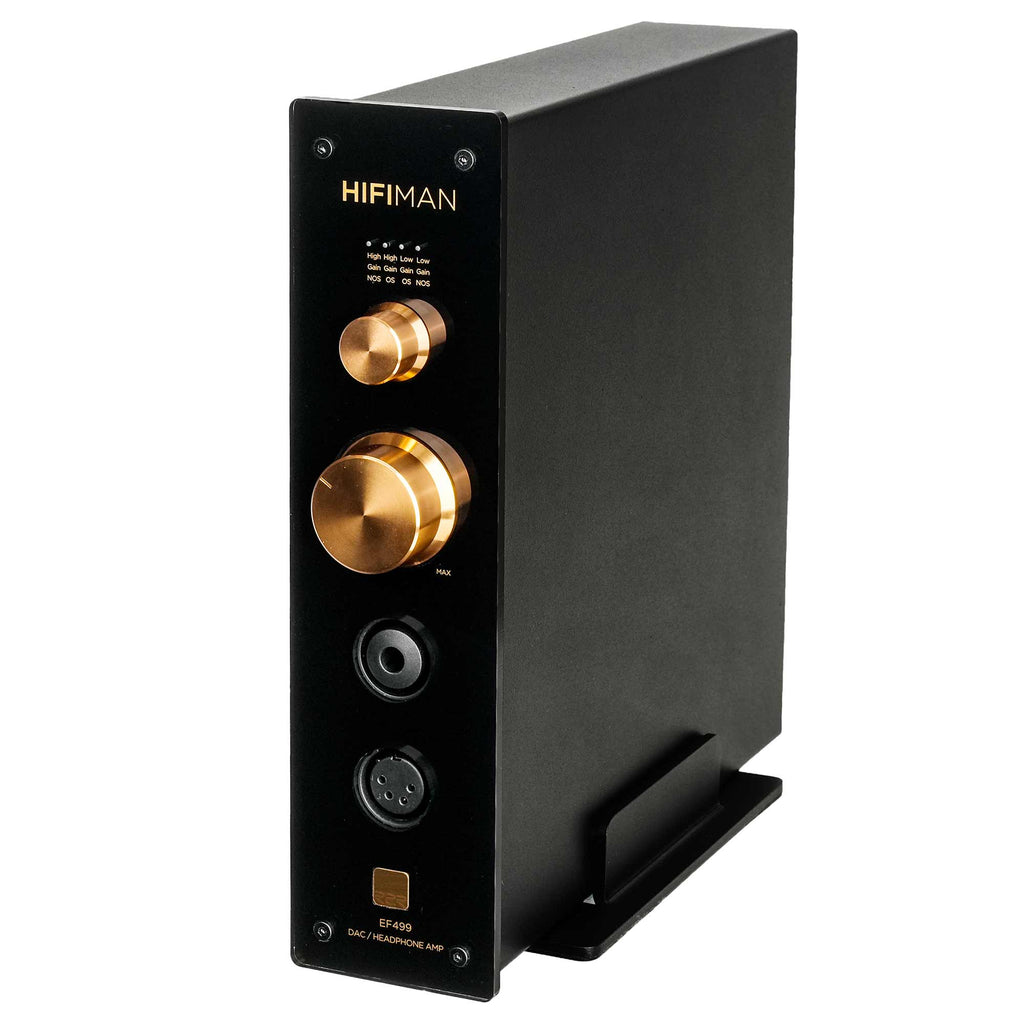

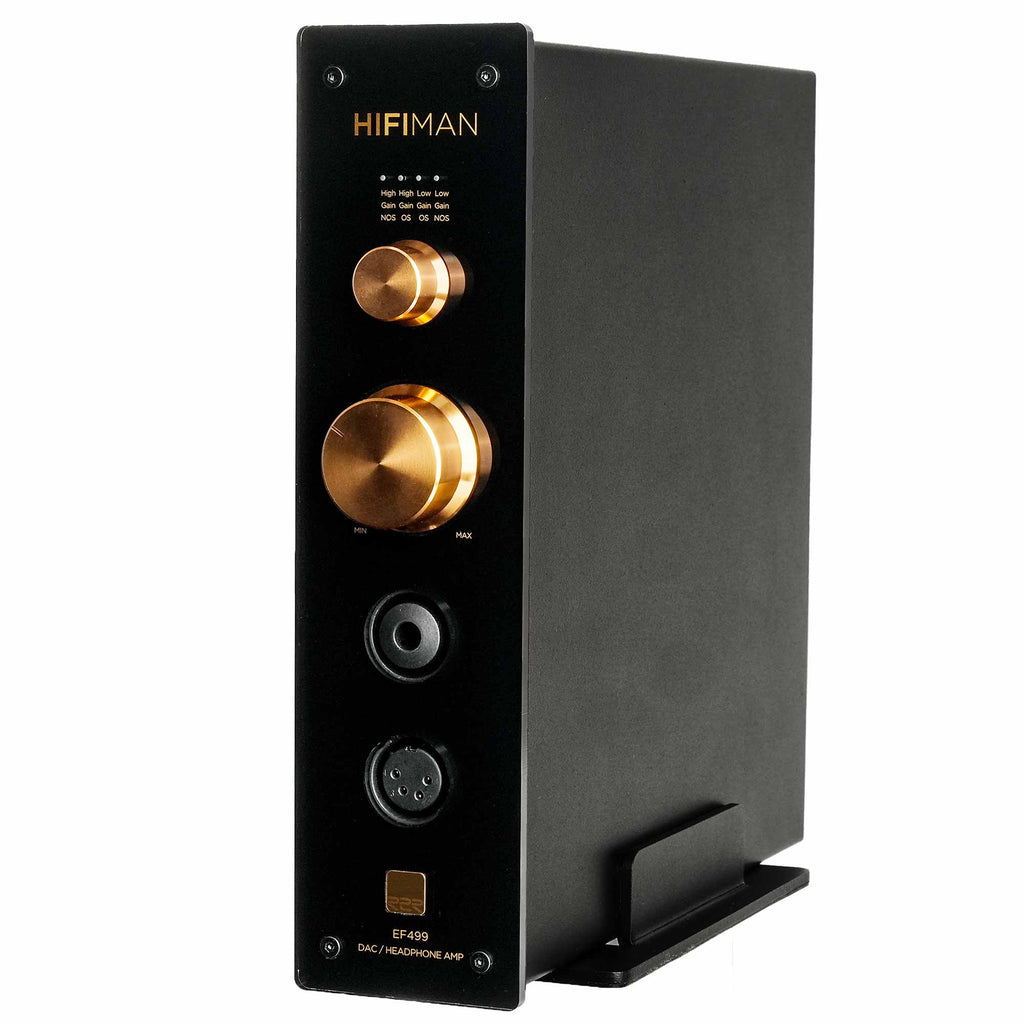

HIFIMAN EF499 combines R2R conversion and a balanced headphone amplifier in a space-conscious vertical chassis.
The EF499 makes a strong case as a first dedicated desktop system when you want balanced headphone drive and useful connections without moving to the EF500's price. Its upright black-and-copper design takes up less desk width than many conventional stacks. Choose it for its overall feature set, not on the assumption that a high output rating makes every headphone a perfect match.
This is a mains-powered desktop unit, not a USB-powered dongle. Use a suitable data cable from your computer or compatible mobile device and leave space for ventilation and rear connections.
The two video reviews below compare EF499 and EF500 directly. The EF499 is the lower-cost choice if you want the upright design, network input and OS/NOS controls shared by both models.
Compare our HIFIMAN EF500 page. OS means oversampling; NOS means non-oversampling. Both gain settings offer these modes, making it easy to compare them at a matched listening volume.

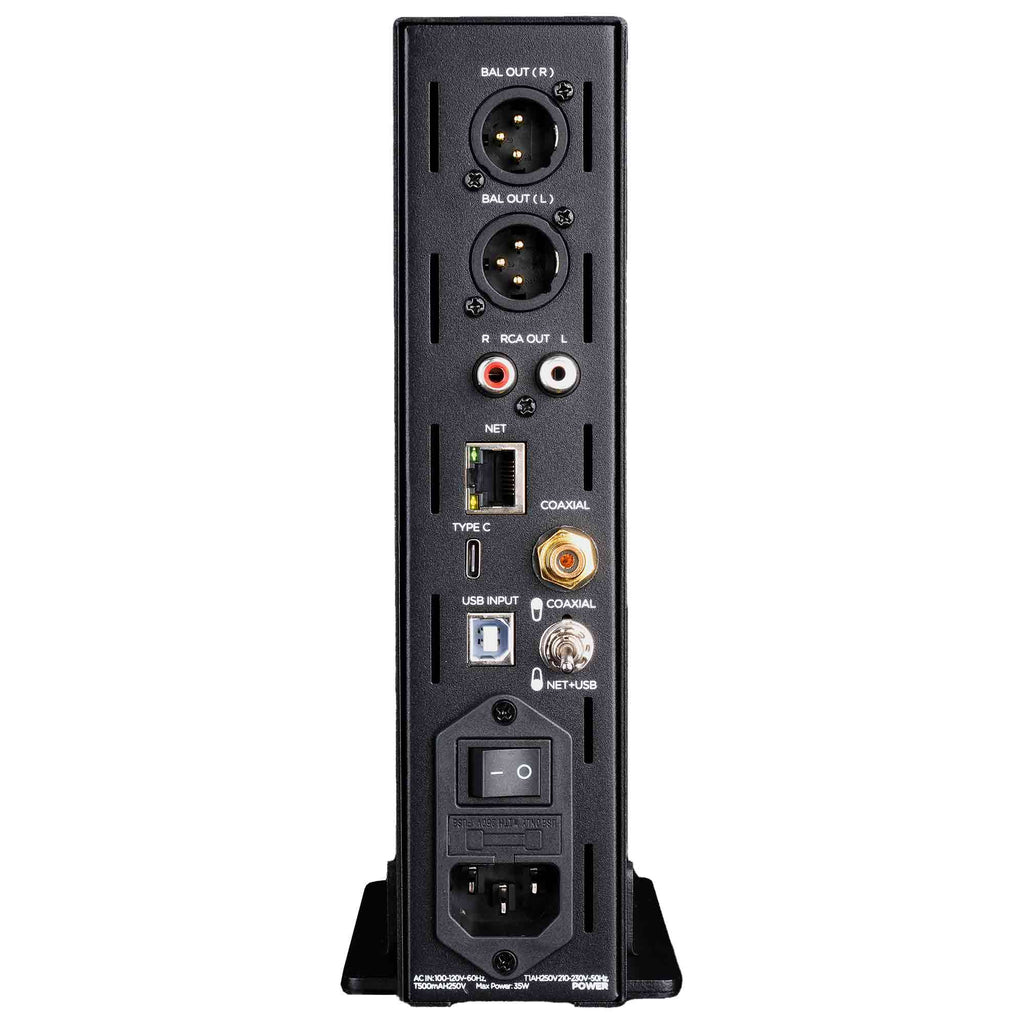

Select coaxial or NET+USB using the rear switch. For computer playback, use USB-B or USB-C with a data-capable cable; a charge-only cable will not work. Network playback uses the Ethernet port and compatible playback software. Check the manufacturer's setup guidance for your preferred service rather than assuming every streaming app is supported.
Start with low gain and a low volume, then increase only as needed. The balanced and single-ended outputs have different power ratings. Use a headphone cable wired for the chosen connection; the rear XLR line outputs are not additional headphone sockets. Before first use, check that the unit's voltage setting matches your local mains supply, following the manual.
| DAC | R2R |
|---|---|
| Headphone outputs | 4-pin XLR balanced; 6.35mm single-ended |
| Maximum headphone power at 32Ω | 4.35W/channel balanced; 1.28W/channel single-ended |
| Inputs | USB-B, USB-C, coaxial digital; Ethernet network |
| Analog outputs | Stereo RCA and balanced XLR |
| Gain / conversion controls | High gain NOS, high gain OS, low gain OS, low gain NOS |
| THD+N, line output | 0.008% at 0dB |
| Channel separation | 95 ±3dB |
| Signal-to-noise ratio | 99dB, A-weighted, AP open-loop test |
| Weight | 3.3kg |
See the owner's guide for the detailed chassis and base dimension drawing. Published output power is headroom capability, not a recommended listening level.
Overall rating: 4.0 / 5 from 1 reviews.
Review topics: [].
"Great headphone amp / Dac but no manual. I use it everyday, so I had to figure it out myself. It wasn’t hard, but still, a manual would of been nice"
